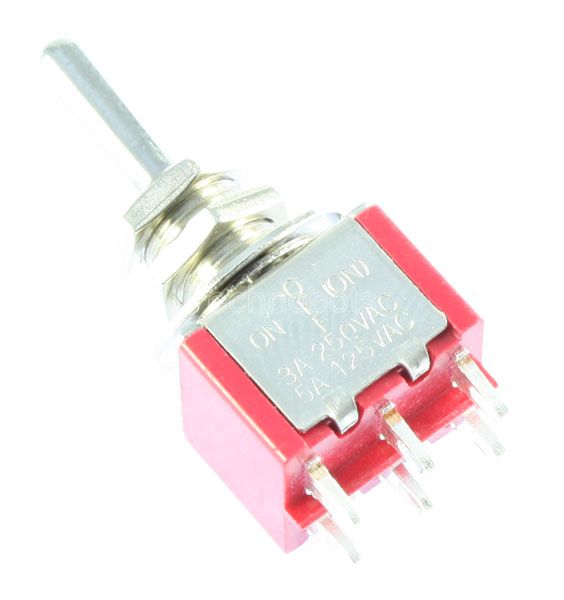

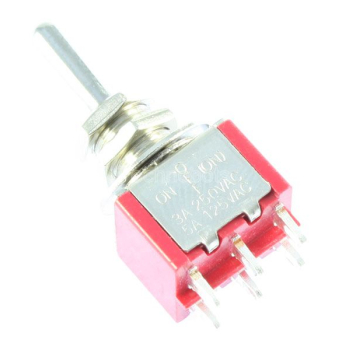

DPDT on/off/(on) Miniature Toggle Switch

£1.80
(£2.16 UK, incl VAT)
Price in points: 360 points
1610-116
7 g
In Stock
+ −
Add to wish list

Like 1610-114 but with centre off, latching in one direction and spring return to the centre in the other.

* Solder lug terminations
* Silver plated copper alloy contacts
* Stainless steel housing
* 5A 125Vac / 28Vdc
*50,000 make and break operations at full load
*Contact resistance 10mOhms maximum
*Insulation resistance 1GOhms
Dielectric strength 1,500Vrms
Operating temperature -30 to +85 Deg C
