From our Makertronics branded range of products at Everyday Low Prices.

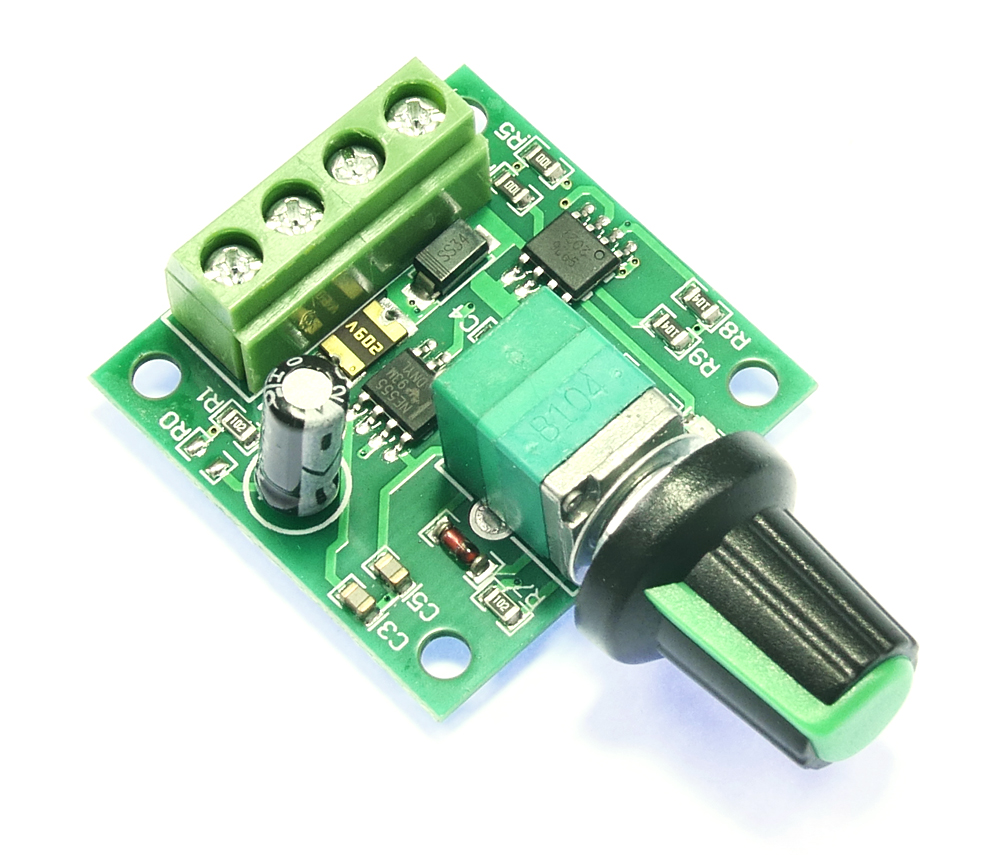

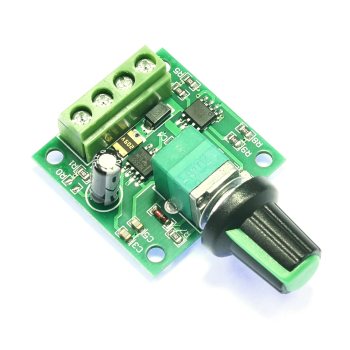

This tiny motor speed controller for dc brushed motors offers an efficient means of regulating the voltage to a motor. The voltage can be adjusted from 0-100% which in turn will vary the motor speed. The motor controller is non-reversing which means the motor will only run in a single direction.
As with most speed controllers, a reversed power supply will destroy the controller as will motors drawing more than 2A especially if the motor is stalled.
Specifications:
- Input supply voltage: 2-15Vdc
- Maximum output power at 15V: 30W
- Maximum continuous output current: 2A
- Dimensions: 32 x 32 x 15mm
