From our Makertronics branded range of products at Everyday Low Prices.

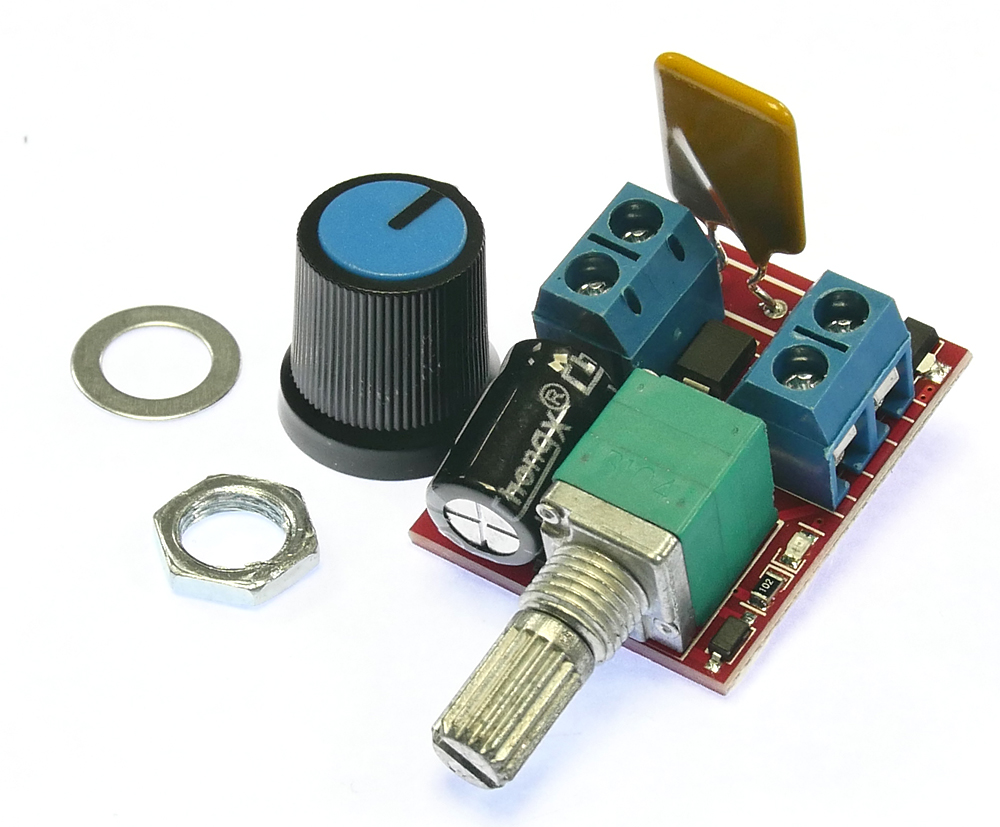

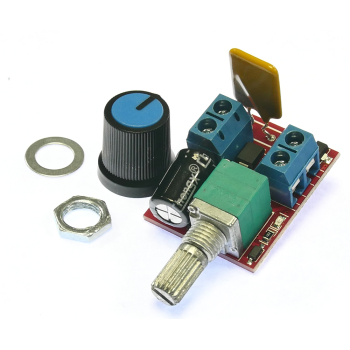

This tiny motor speed controller for dc brushed motors offers an efficient means of regulating the voltage to a motor. The voltage can be adjusted from 0-100% which in turn will vary the motor speed. The motor controller is non-reversing which means the motor will only run in a single direction.
As with most speed controllers, a reversed power supply will destroy the controller as will motors drawing more than 5A especially if the motor is stalled.
Specifications:
- Input supply voltage: 3-35Vdc
- Maximum continuous output current: 5A
- PWM frequency: 10kHz
- Maximum control power: 90W
- Built in fuse for protection
- Duty cycle: 1-100%
- PCB: 25 x 30mm
