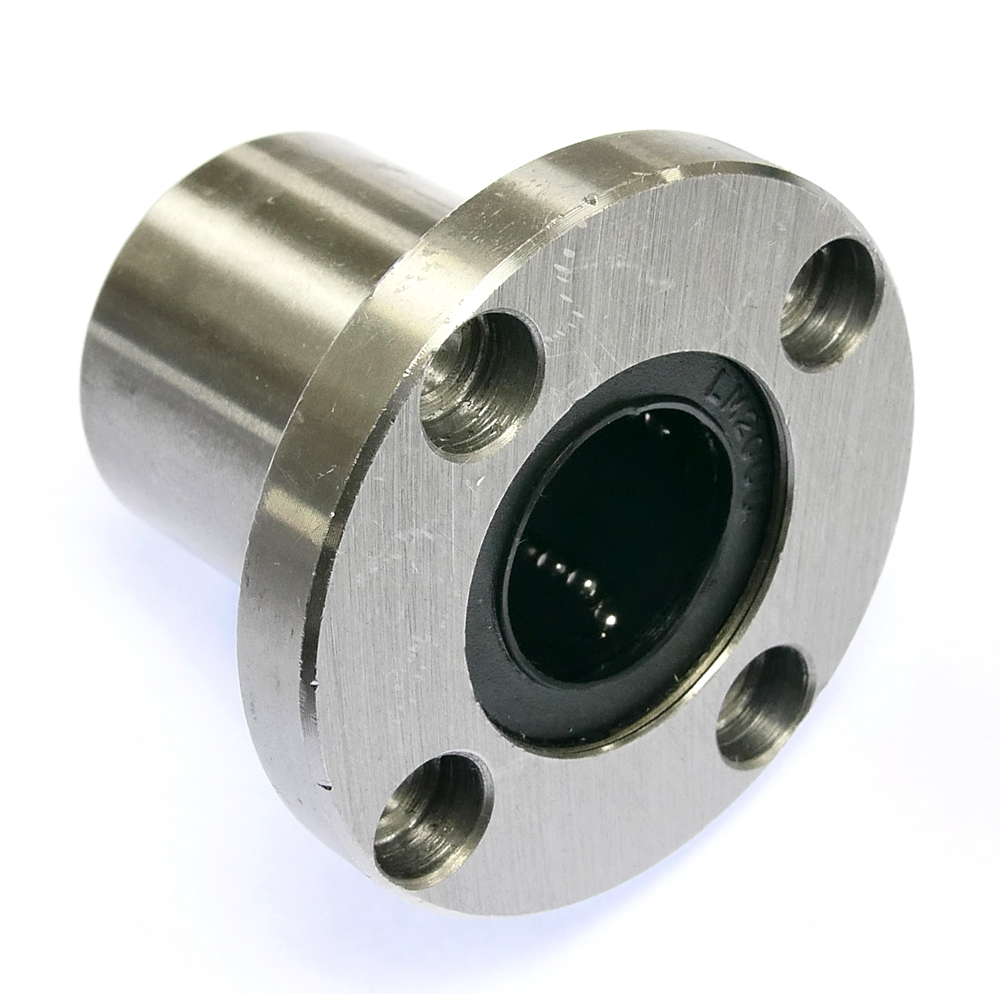

Makertronics Linear Bearing LMF20UU 20mm Flange Bushing

£3.67
(£4.40 UK, incl VAT)
4604-819
161 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

Like our standard LM20UU linear slide bush for 20mm hardened steel shafts but flange mounting.

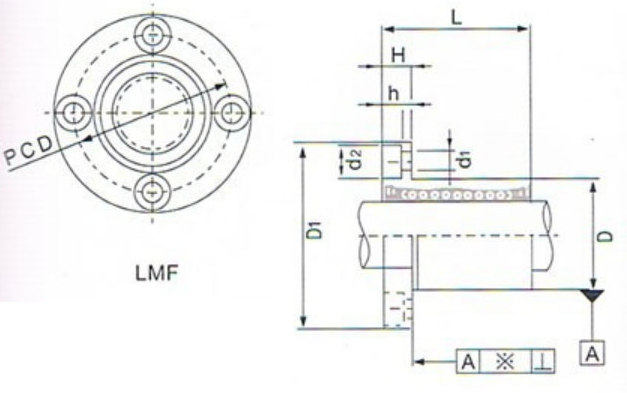

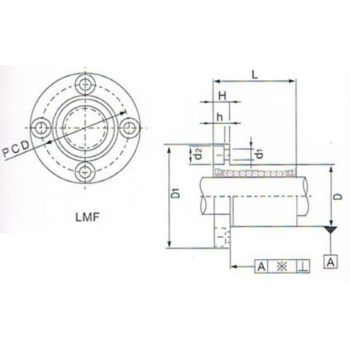

  • Bearing Diameter D: 32mm
  • Flange Diameter D1: 54mm
  • Overall Length L: 42mm
  • Flange Width H: 8mm
  • Flange Mounting Holes PCD: 43mm
  • Inside diameter: 20mm
  • Number of ball rows: 5
