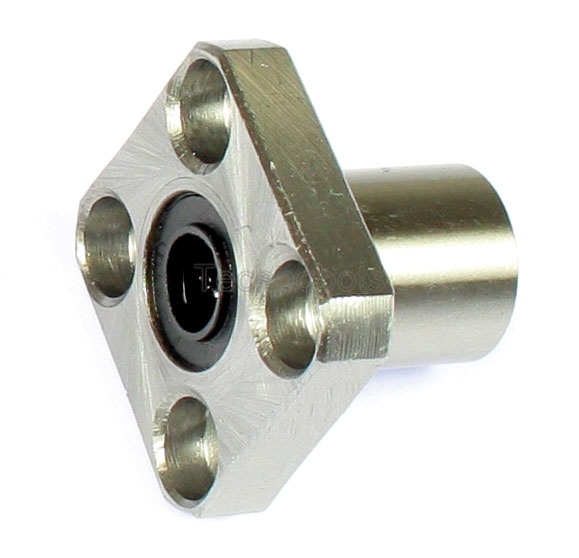

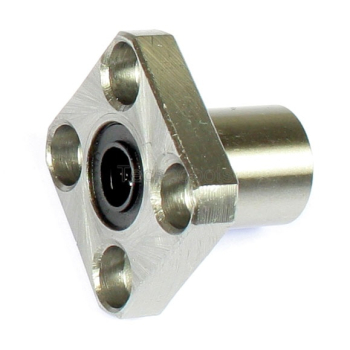

Makertronics Linear Bearing LMK6UU 6mm Square Flange Bushing

£1.94
(£2.33 UK, incl VAT)
4604-820
18 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

Like our standard LMF6UU linear slide bush for 6mm hardened steel shafts but square flange mounting rather than round.

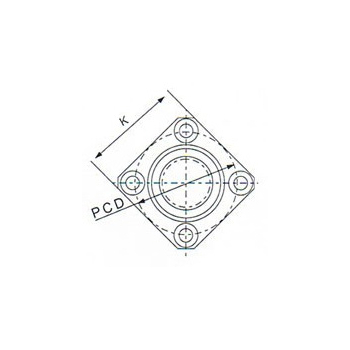

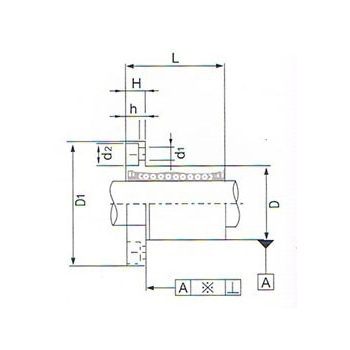

  • Bearing Diameter D: 12mm
  • Flange Size K: 22x22mm
  • Overall Length L: 16mm
  • Flange Width H: 5mm
  • Flange Mounting Holes PCD: 20mm
  • Inside diameter: 6mm
  • Number of ball rows: 4
