MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixing

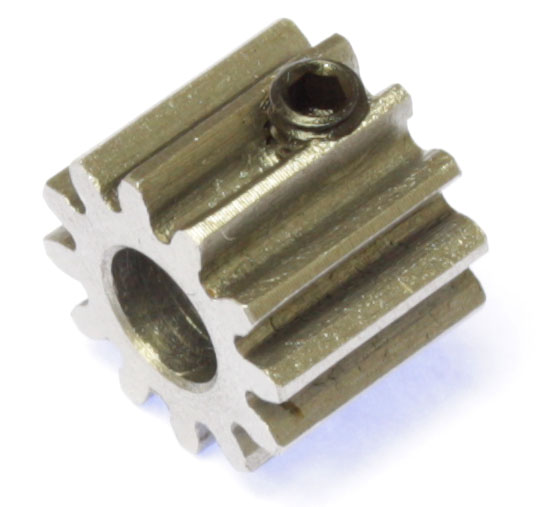

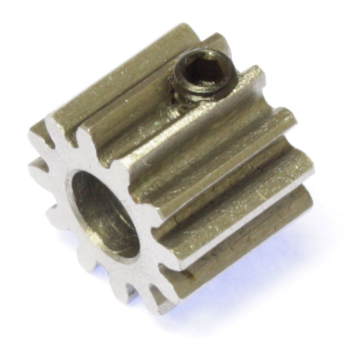

MOD 1 12 Tooth Tbot Steel Model Gear. Note: hobbed type pinion with a cutter runout after the 5mm face width.
MOD 1 12 Tooth Tbot Steel Model Gear. Note: hobbed type pinion with a cutter runout after the 5mm face width.
| Part No. | 4910-112 |
| Code | SSN10/12B |
| Type | B |
| No. of Teeth | 12 |
| Pitch Ø dp | 12 |
| Bore Ø H8 | 6 |
| Hub/Boss Ø dm | 14 |
| Outside Ø de | 14 |
| O/A Width A | 11 |
| Face Width B | 5 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
