Stepper Motor 17HS8401, NEMA 17, 1.68A, 4.5mH, 1.8R, 55 N.cm

£15.96
(£19.15 UK, incl VAT)
Price in points: 3192 points
6013-304
387 g
In Stock
+ −
Add to wish list

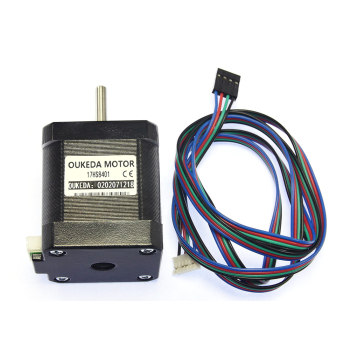

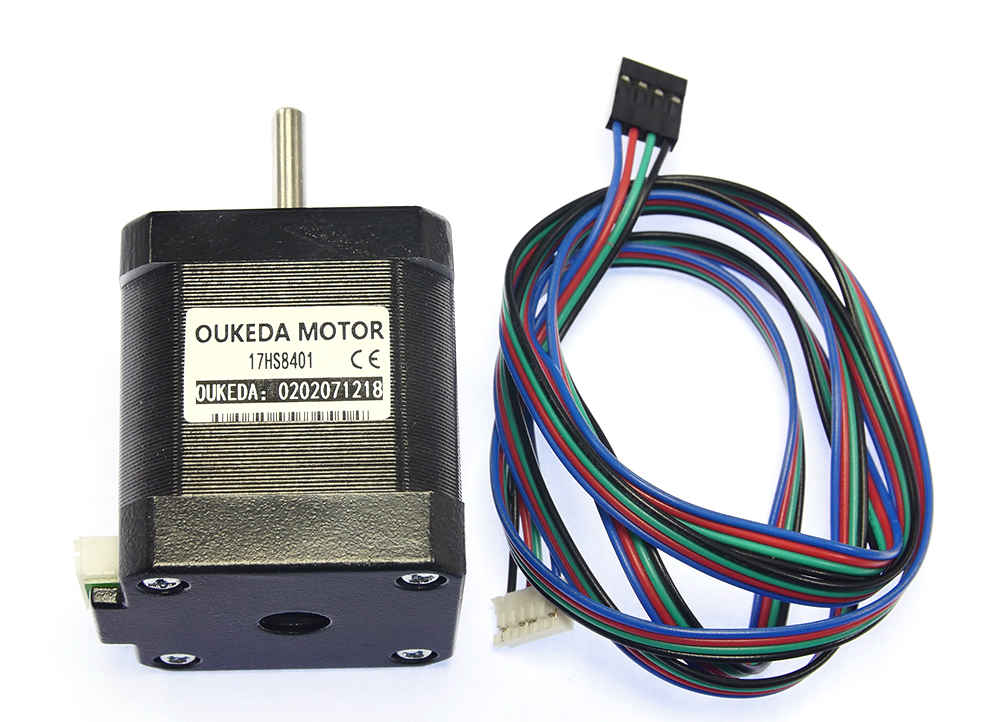

Stepper motor. Nema 17 model 17HS8401

  • Step angle: 1.8 Degrees +/- 5%

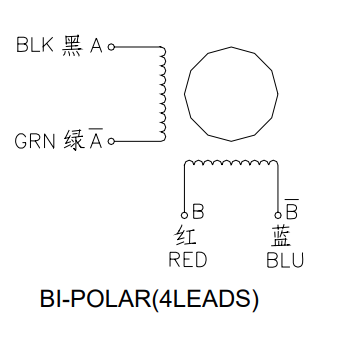

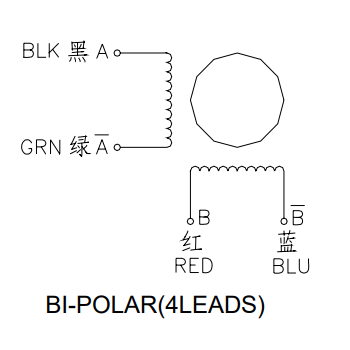

  • Phases: 2
  • Rated Current: 1.7A
  • Holding Torque: 52 N.cm
  • Detent Torque: 2.6 N.cm
  • Phase Resistance: 1.8R
  • Phase Inductance: 3.2mH
  • Rotor Inertia: 68g.cm²
  • Motor Weight: 380g

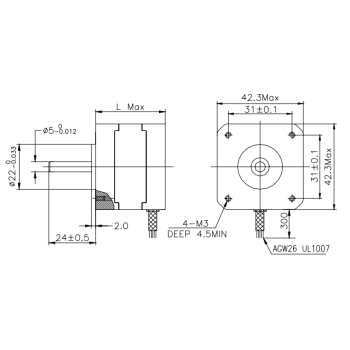

  • Body length L: 48mm
